High Friction Surface Embossing Floor Deck Roll Forming Machine YX70-165 Metal Deck

Name: High Friction Surface Embossing Floor Deck Roll Forming Machine YX70165 Metal Deck
Brand: METALIGN
Price: 1 USD

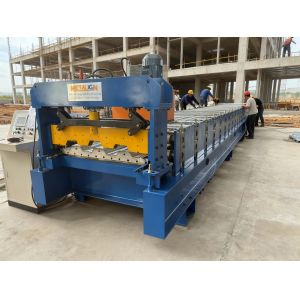

Quality High Friction Surface Embossing Floor Deck Roll Forming Machine YX70-165 Metal Deck for sale

Brand Name : METALIGN

Model Number : MD

Certification : CE,ISO,etc

Place of Origin : CHINA

MOQ : 1 set

Price : Based on customization.

Payment Terms : L/C,T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Industrial plastic film wrapping, secured with steel wire.

Product name : YX70-165 Floor Deck Roll Forming Line with Deep Embossing and Hydraulic Cutting

Key words : Cold roll forming/Galvanized steel/YX70-165/Metal deck

Profile : Metal deck

Application : Metal decking / Floor system / Structural floor support / Concrete bonding

Material type : Galvanized steel

Material thickness : 0.8-1.5mm

Production speed : 15m/min

Main motor power : 22Kw

Forming stations : 27

Driving system : Chain

Frame structure : Wall panel structure

Shaft diameter : 95mm

Machine condition : Brand new

Shaft material : #45 steel quenched 55-60℃

Roller material : High grade #45 steel , surface with hard chrome

Display language : English/Spanish/Russian/French,etc, customizable

Control technique : PLC+Touch Screen

Delivery time : 30 days

Contact Now

High Friction Surface Embossing Floor Deck Roll Forming Machine YX70-165 Metal Deck

1. Production Line Overview

This production line is designed for manufacturers focusing on metal deck products, particularly YX70-165 floor decking, used in commercial and industrial construction. Its advantages include high-efficiency embossing and robust material forming capabilities, making it ideal for high-strength structural applications.

2. Profile Description

The YX70-165 metal deck is made from galvanized steel with a thickness range of 0.6-1.2mm. Its embossed surface enhances concrete bonding and friction. This decking is widely used in floor systems, roofing, and structural applications, offering strength and durability for heavy-duty construction projects.

3. Production Process

Decoiler → Embossing roller → Roll former → Hydraulic cutter → Finished product
The process begins with decoiling the steel, followed by embossing to increase surface friction. The material is then formed into the YX70-165 profile using a 26-station roll former. After forming, the material is cut to the required length using a hydraulic cutter.

4. Technical Parameters

Machine	Analysis
Decoiler	Supports coils up to 3T, ensuring smooth uncoiling for consistent material feed into the process.
Embossing Roller	Provides deep embossing to enhance concrete adhesion, increasing friction on the steel surface.
Roll Former	26-station forming ensures precise and uniform profile production, with the ability to form complex shapes.
Hydraulic Cutter	Delivers accurate cutting of formed material at high speed, ensuring clean and precise lengths.
PLC Cabinet	Central control system for the entire production line, optimizing automation and operation efficiency.
Hydraulic Station	Provides power for the embossing and cutting processes, ensuring stable operation under load.
Out Table	Two sets for material collection and storage, ensuring smooth handling and transport of finished products.

5. Key Focus

High Efficiency: The production line is designed for high-speed manufacturing, optimizing productivity while maintaining precision.
Cost-Effective: Features like waste material collection and efficient cutting reduce unnecessary costs, offering long-term economic benefits.
Customization Options: Offers flexibility to meet various client needs, including custom embossing and profile dimensions.

6. Production Line Components

Machine	Quantity
Decoiler	1 set
Embossing Roller	1 set
Roll Former	1 set
Hydraulic Cutter	1 set
PLC Cabinet	1 set
Hydraulic Station	1 set
Out Table	2 sets

7. Customization Options

We offer customization for the YX70-165 metal deck line, including options such as adjusting the embossing depth for specific concrete adhesion needs, modifying the number of forming stations for increased production flexibility, and customizing the hydraulic cutter for different cutting lengths or thicknesses.
